Android Auto Radio Carplay Nissan Qashqai J11 2013-2017 X-Trail 3 T32 2013-2015

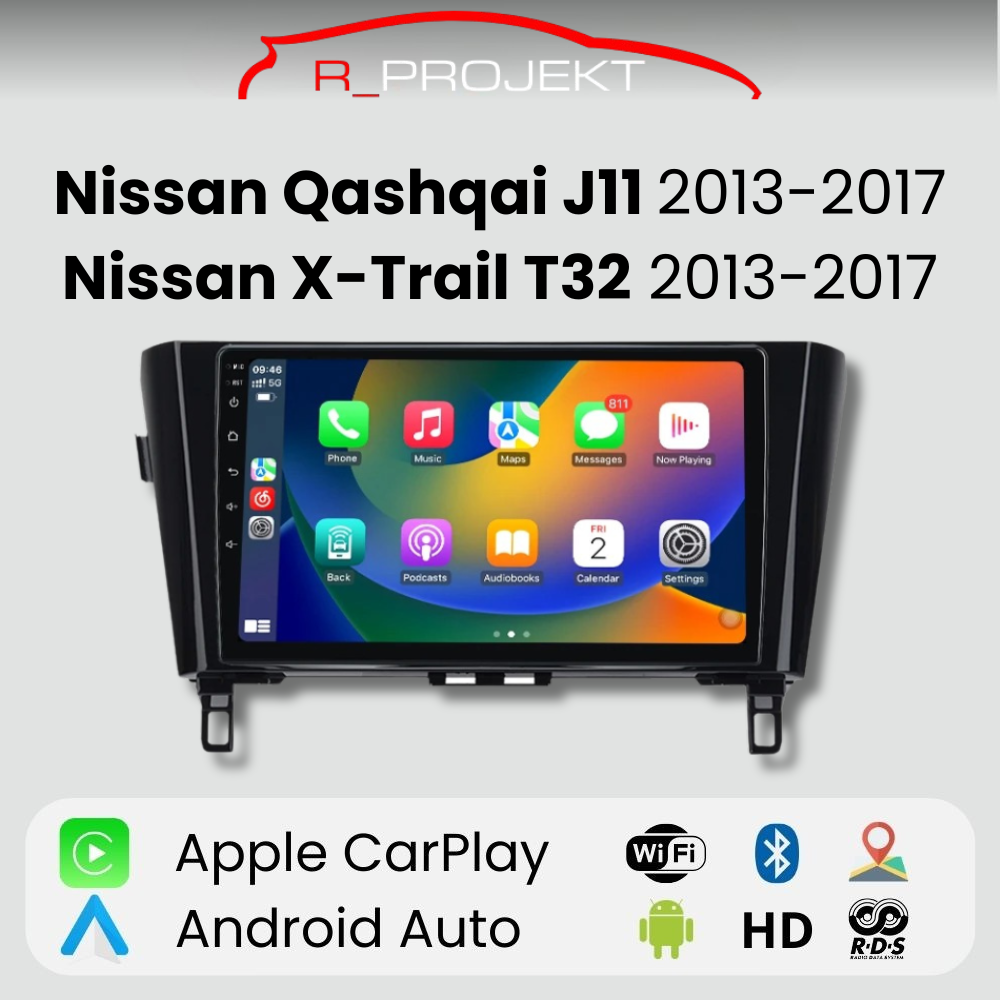

Android Auto Carplay Radio for Nissan Qashqai J11 (2013-2017) / X-Trail 3 T32 (2013-2015)

Upgrade your Nissan Qashqai J11 (2013-2017) or X-Trail 3 T32 (2013-2015) with this advanced Android multimedia screen. This equipment is designed to integrate perfectly into your vehicle, offering a more connected, safe and efficient driving experience.

• Advanced Connectivity : Enjoy Apple CarPlay and Android Auto functions both wirelessly and wired. Transfer your mobile content to the car screen with Mirror Link. Listen to your favorite music and playlists on Spotify, and navigate with confidence using Google Maps or Waze via voice commands, making your driving safer and more efficient.
• Full compatibility : Keep all the original functions of your vehicle. Control the steering wheel functions and access fuel consumption and trip information from the screen, without losing any functionality when installing your new Android radio.
• Technical specifications :
  • Operating system : Android 12
  • Touch Screen : 10.1 inch 1024x600 [1280x720 IPS optional Octa version]
  • Processor : Quad Core 1.2 GHz [Octa Core 1.6 GHz optional Octa version]
  • RAM Memory : 1GB DDR3 [2GB/4GB/6GB/8GB optional]
  • Internal storage : 32GB [64GB/128GB/256GB optional]
  • Connectivity : Bluetooth, WIFI [4G network optional Octa version]
  • Built-in GPS
  • Mirror Link Functionality
  • Integrated steering wheel control
  • Radio with RDS + DSP

Transform your Nissan Qashqai or X-Trail with this Android multimedia screen and enjoy a more connected, safe and advanced driving experience.

CONTENT OF THE KIT:

• Screen, custom frame, power cable, USB cable, GPS module, rear camera cable, antenna cable, CANBUS module (if the model has CANBUS), 4G antenna (Octa version only) and RCA wiring with SIM card slot (Octa version only) .

The OCTA variants are our most economical options, they have a 4-core processor, a resolution of 1024*600, RDS, GPS connectivity, Wi-Fi, Bluetooth and wireless Android Auto & Apple CarPlay systems. These variants do not support reversing cameras with 1080P resolution.

The OCTA variants have an 8-core processor, 1280*720 HD resolution, GPS connectivity, Wi-Fi, Bluetooth, 4G (inserting a SIM card) RDS, GPS connectivity, Wi-Fi, Bluetooth, Android Auto & Apple systems Wireless CarPlay, additional RCA wiring with SIM card slot and DSP equalizer options.

CANBUS Configuration (for vehicles with CANBUS )

Make sure the CANBUS module is connected correctly:

Quad : Enter the Car Settings application, Factory section , CarType Settings , password 000000 , select canbus brand and car model

Octa : Go to Settings , Car infotainment , About device , click on the top right gear , password 8888 or 8878 , CAN Type , click on ALL and search for the car model. Once done, click on SAVE and restart the device

Steering wheel control configuration (for vehicles WITHOUT CANBUS )

Quad : Go to Car settings , General , SWC Type , leave it on Learning Type , go to Enter SWC setting interface and configure the controls to your liking

Octa : Make sure that no CANBUS configuration has been applied previously by going to Settings , Car infotainment , About device , click on the top right gear , password 8888 or 8878 , CAN Type , check that the CAN Type option is 0

After this, go to Settings , then Car Infotainment , SWC , configure the steering wheel controls by pressing the function we want on the screen and holding down the steering wheel button we want to program.

Rear Camera Connection

* THE ⓸ WIRE IS FOUND IN THE MAIN RADIO WIRING, ON SOME MODELS IT IS USUALLY LABELLED AS "REVERSE" OR "BRAKE" . IF IT IS NOT LABELLED, IT IS THE ONE MARKED IN THE NEXT PHOTO AS ⓷ .

* THE ⓸ WIRE IS FOUND IN THE MAIN RADIO WIRING, ON SOME MODELS IT IS USUALLY LABELLED AS "REVERSE" OR "BRAKE" . IF IT IS NOT LABELLED, IT IS THE ONE MARKED IN THE NEXT PHOTO AS ⓷ .

Rear Camera Settings

Quad : Enter Settings , Factory , password 000000 , Reverse Detection.

Octa : Go to Settings , Car Infotainment , About device , click on the top right gear , password 8888 or 8878 , Backup Setup , look for CamType and select the appropriate option for your camera.
