Android Auto Radio Carplay Fiat 500X 2014 - 2020

• Android 12
• 9-inch touch screen 1024*600 - 1280*720P (Optional V1 Plus)
• Android auto + Apple Carplay
• Quad Core 1.2 GHZ - (Octa Core 1.8 GHZ optional V1 Plus) + DDR3 1GB Flash (2GB/4GB/6GB/8GB optional)
• 32GB memory (64GB/128GB/256GB optional)
• Bluetooth 5.0
• WIFI (optional 4G network V1 Plus)
• Built-in GPS
• Mirror link
• Steering wheel control
• RDS + DSP (optional)

CONTENTS OF KIT:

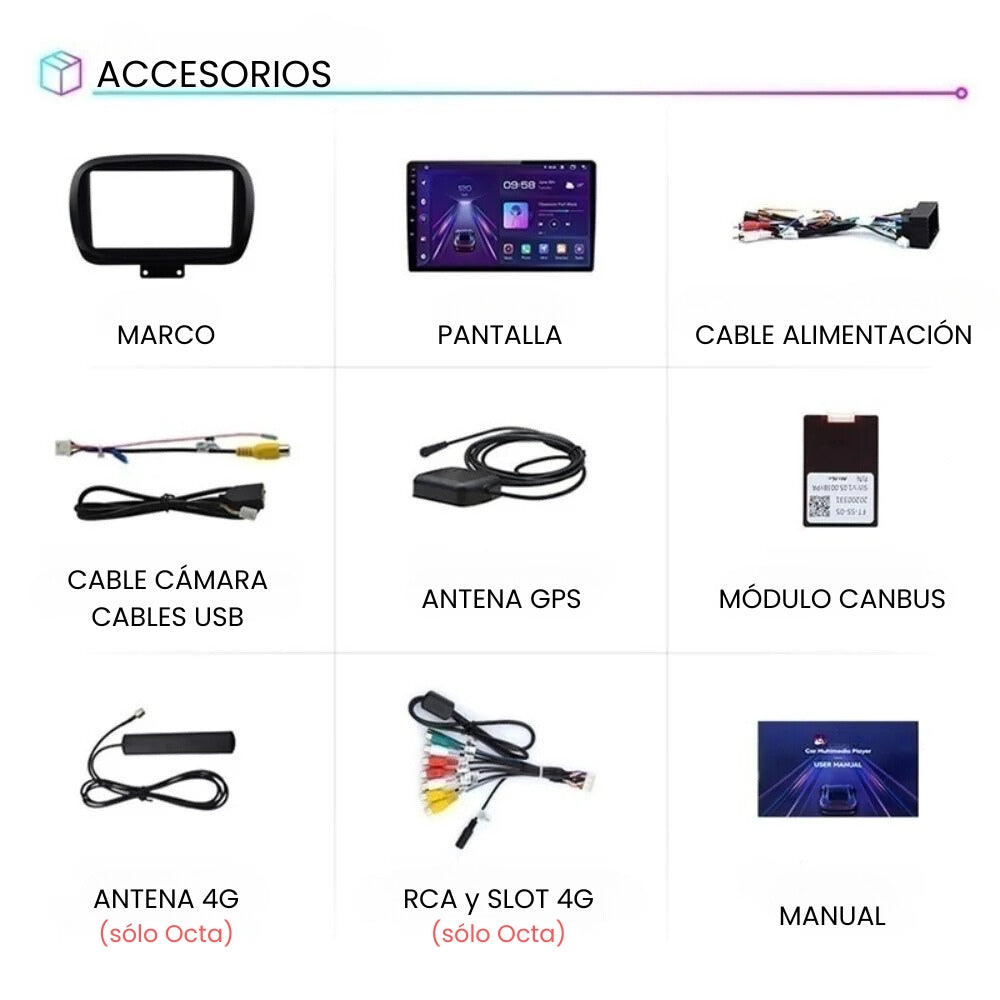

• Screen, custom frame, power cable, USB cable, GPS module, rear camera cable, antenna cable, CANBUS module (if the model has CANBUS), 4G antenna (V1 Plus only) and RCA wiring with card slot SIM (only V1 Plus).

V1C and V1 Pro C CANBUS CONFIGURATION

V1 PLUS CANBUS CONFIGURATION

CANBUS MODULE CONNECTION

Factory Password V1 Plus 8888/8878 V1C and V1 Pro C 000000

Password Boot logo 5678

The QUAD variants are our most affordable options, featuring a quad-core processor, 1024x600 resolution, RDS, DSP, GPS connectivity, Wi-Fi, Bluetooth, and wireless Android Auto and Apple CarPlay. These variants do not support 1080P rearview cameras.

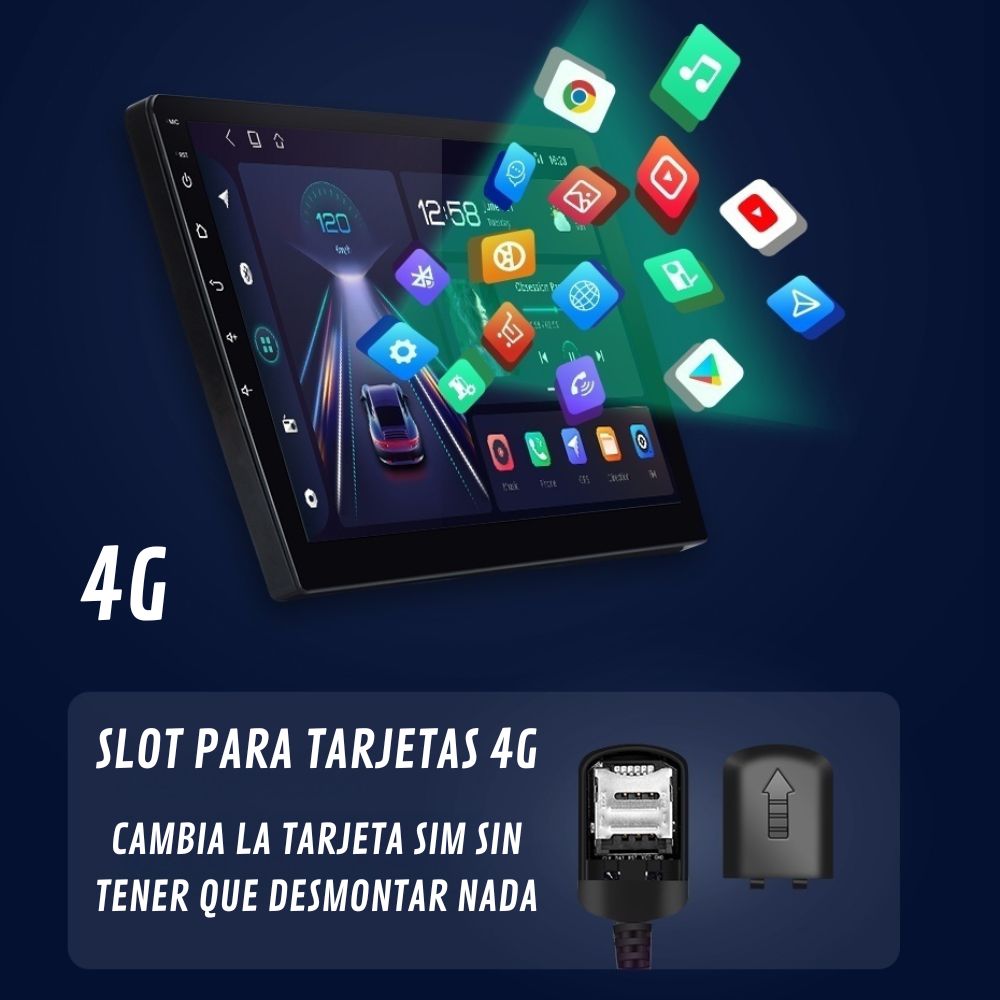

The OCTA variants feature an Octa-core processor, 1280*720 HD resolution, GPS, Wi-Fi, Bluetooth, 4G (by inserting a SIM card) RDS connectivity, wireless Android Auto & Apple CarPlay systems, additional RCA wiring with SIM card slot and DSP equalizer options.

CANBUS Configuration (for vehicles with CANBUS)

Make sure the CANBUS module is properly connected:

Quad :

Enter the Car Settings application, Factory section , CarType Configuration , password 000000 / 16176699 , select the canbus brand and car model

Octa :

Enter the Car Settings application, Factory section , CarType Configuration , password 000000 / 8888 , select the canbus brand and car model

Steering wheel control configuration (for vehicles WITHOUT CANBUS)

Quad :

Make sure that no CANBUS configuration has been previously applied by going to Car Settings , Factory section , CarType Configuration , password 000000 / 16176699 , check that no option is selected, then go to General , SWC and leave it on Learning

After this go into Car settings , Factory section , Learning physical keys and configuring the controls to your liking

Depending on the software, the last step may be to enter the SW Learning application to configure the controls to your liking.

Octa :

Make sure that no CANBUS configuration has been previously applied by going to Car Settings , Factory section , CarType Configuration , password 000000 / 8888 , check that no option is selected, then go to General , SWC and leave it on Learning

After this go into Car settings , Factory section , Learning physical keys and configuring the controls to your liking

Depending on the software, the last step may be to enter the KeyStudy application to configure the controls to your liking.

Rear Camera Connection

VEHICLES WITH CANBUS

* THE ⓸ CABLE IS LOCATED IN THE MAIN WIRING HARNESS OF THE RADIO, IN SOME MODELS IT IS USUALLY LABELED AS "REVERSE" OR "BRAKE" . IF IT IS NOT LABELED, IT IS MARKED IN THE FOLLOWING PHOTO AS ⓷ .

VEHICLES WITHOUT CANBUS

* THE ⓸ CABLE IS LOCATED IN THE MAIN WIRING HARNESS OF THE RADIO, IN SOME MODELS IT IS USUALLY LABELED AS "REVERSE" OR "BRAKE" . IF IT IS NOT LABELED, IT IS MARKED IN THE FOLLOWING PHOTO AS ⓷ .

Rear Camera Settings

Quad :

Go to Settings , Factory , Password 000000 , Reverse Detection.

Octa :

Go to Settings , Car Infotainment , About device , click on the gear at the top right , password 8888 or 8878 , Backar Setup , look for CamType and select the appropriate option for our camera
