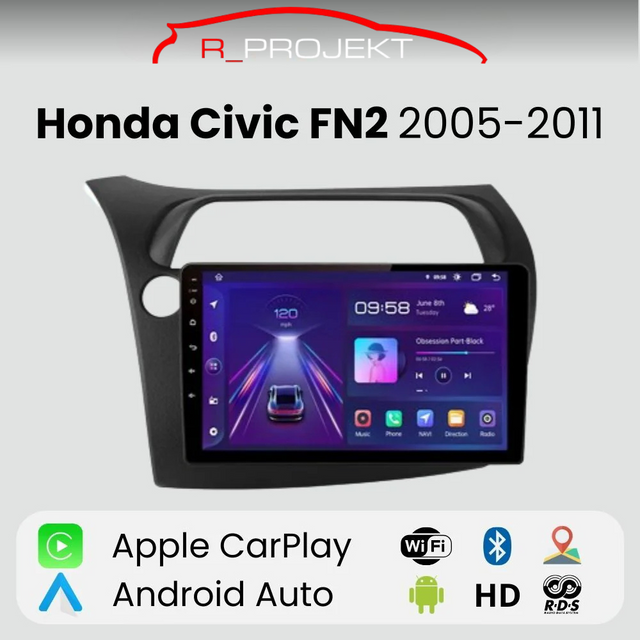

Android Auto Radio Carplay Honda Civic 2005-2011

• Android 12
• 9 inch touch screen 1024*600 (1280*720 optional Octa version)
• Android auto + Apple Carplay
• Quad Core 1.2GHZ - (Octa Core 1.8GHZ optional Octa version) + DDR3 1GB Flash (2GB/4GB/6GB/8GB optional)
• 32GB memory (64GB/128GB/256GB optional)
• Bluetooth
• WIFI (4G network optional Octa version)
• Built-in GPS
• Mirror link
• Steering wheel control
• RDS + DSP

CONTENT OF THE KIT:

• Screen, custom frame, power cable, USB cable, GPS module, rear camera cable, antenna cable, CANBUS module (if the model has CANBUS), 4G antenna (Octa version only) and RCA wiring with SIM card slot (Octa version only) .

Transform your 2005-2011 Honda Civic with our Android Auto Carplay radio, designed to give you a modern and connected driving experience. This advanced multimedia system includes an HD touchscreen that gives you intuitive control of all your favorite apps, from GPS navigation to music and hands-free calling. Compatible with both Android Auto and Apple Carplay, you'll be able to easily access your maps, make calls, and play music safely while driving. Plus, its Bluetooth connectivity ensures smooth, distraction-free communication.

This device is tailor-made to fit perfectly into your Honda Civic, maintaining the original aesthetics of the vehicle and offering easy installation. With the Android Auto Carplay radio, you will upgrade your car with the most advanced technology, improving every journey with features such as voice recognition and quick access to applications. Take your driving experience to the next level and enjoy greater comfort and safety on the road with this multimedia solution designed specifically for your Honda Civic 2005-2011.

The OCTA variants are our most economical options, they have a 4-core processor, a resolution of 1024*600, RDS, GPS connectivity, Wi-Fi, Bluetooth and wireless Android Auto & Apple CarPlay systems. These variants do not support reversing cameras with 1080P resolution.

The OCTA variants have an 8-core processor, 1280*720 HD resolution, GPS connectivity, Wi-Fi, Bluetooth, 4G (inserting a SIM card) RDS, GPS connectivity, Wi-Fi, Bluetooth, Android Auto & Apple systems Wireless CarPlay, additional RCA wiring with SIM card slot and DSP equalizer options.

CANBUS Configuration (for vehicles with CANBUS)

Make sure the CANBUS module is properly connected:

Quad :

Enter the Car Settings application, Factory section , CarType Configuration , password 000000 / 16176699 , select the canbus brand and car model

Octa :

Enter the Car Settings application, Factory section , CarType Configuration , password 000000 / 8888 , select the canbus brand and car model

Steering wheel control configuration (for vehicles WITHOUT CANBUS)

Quad :

Make sure that no CANBUS configuration has been previously applied by going to Car Settings , Factory section , CarType Configuration , password 000000 / 16176699 , check that no option is selected, then go to General , SWC and leave it on Learning

After this go into Car settings , Factory section , Learning physical keys and configuring the controls to your liking

Depending on the software, the last step may be to enter the SW Learning application to configure the controls to your liking.

Octa :

Make sure that no CANBUS configuration has been previously applied by going to Car Settings , Factory section , CarType Configuration , password 000000 / 8888 , check that no option is selected, then go to General , SWC and leave it on Learning

After this go into Car settings , Factory section , Learning physical keys and configuring the controls to your liking

Depending on the software, the last step may be to enter the KeyStudy application to configure the controls to your liking.

Rear Camera Connection

VEHICLES WITH CANBUS

* THE ⓸ CABLE IS LOCATED IN THE MAIN WIRING HARNESS OF THE RADIO, IN SOME MODELS IT IS USUALLY LABELED AS "REVERSE" OR "BRAKE" . IF IT IS NOT LABELED, IT IS MARKED IN THE FOLLOWING PHOTO AS ⓷ .

VEHICLES WITHOUT CANBUS

* THE ⓸ CABLE IS LOCATED IN THE MAIN WIRING HARNESS OF THE RADIO, IN SOME MODELS IT IS USUALLY LABELED AS "REVERSE" OR "BRAKE" . IF IT IS NOT LABELED, IT IS MARKED IN THE FOLLOWING PHOTO AS ⓷ .

Rear Camera Settings

Quad :

Go to Settings , Factory , Password 000000 , Reverse Detection.

Octa :

Go to Settings , Car Infotainment , About device , click on the gear at the top right , password 8888 or 8878 , Backar Setup , look for CamType and select the appropriate option for our camera
