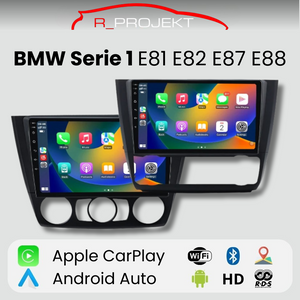

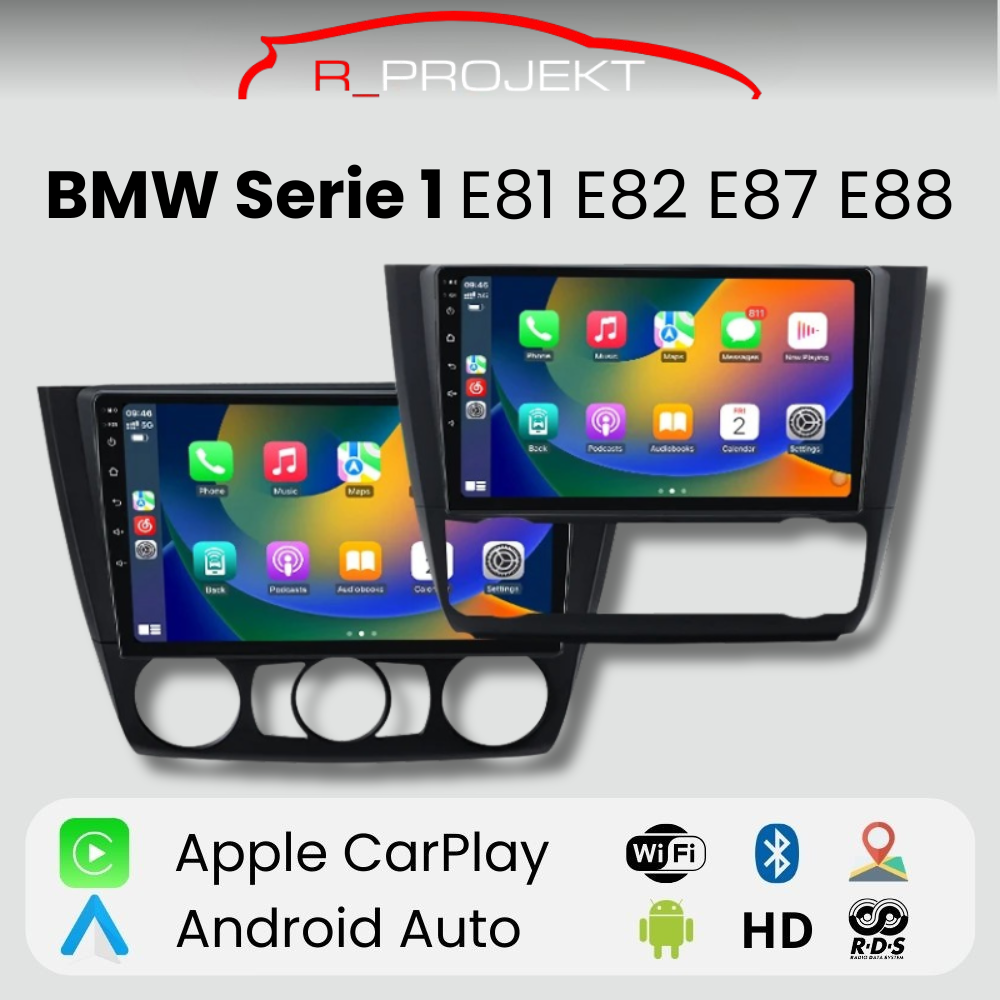

Breathe New Life into Your BMW 1 Series
Ditch the old stock radio and jump straight into the future. This HD touchscreen integrates perfectly into the dashboard of your BMW 1 Series (E81, E82, E87, and E88), giving you instant access to modern tech without ruining the classic look of your car.
What you get with this upgrade:
- 📱 Total Connectivity (Wireless): Enjoy Apple CarPlay and Android Auto without the cable clutter.
- 🗺️ Precise GPS Navigation: Built-in GPS so you can use Google Maps, Waze, or your favorite navigation apps directly.
- 🎵 Superior Sound (RDS+DSP): The digital sound processor (DSP) and RDS tuner boost audio quality well beyond factory standards.
- 📞 Bluetooth Hands-Free: Crystal clear calls and music streaming (Spotify, etc.) with zero dropouts.
- 🔌 Seamless Integration: Maintains full compatibility with your steering wheel controls.
⚠️ Heads Up! Check Compatibility

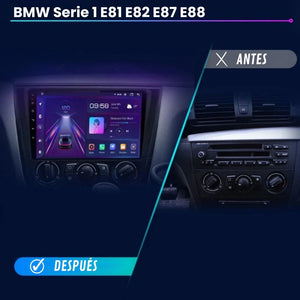

FITS: This screen is ONLY compatible with dashboards that look exactly like the photo:
DOES NOT FIT: Models with the original screen (iDrive) / small storage bin on top, or models with Fiber Optic sound systems (e.g., Harman Kardon, Bose).
CHOOSE YOUR MODEL
CANBUS configuration (for vehicles with CANBUS)
Ensure the CANBUS module is properly connected:
Quad :
Enter the Car Settings application, Factory section , CarType Settings , password 000000 / 16176699 , select canbus brand and car model
Octa :
Enter the Car Settings application, Factory section , CarType Settings , password 000000 / 8888 , select canbus brand and car model
Steering wheel control configuration (for vehicles WITHOUT CANBUS)
Quad :
Ensure that no CANBUS configuration has been previously applied by entering Car Settings , Factory section , CarType Configuration , password 000000 / 16176699 , checking that no option is selected, then entering General , SWC and leaving it on Learning
After this, go into Car settings , Factory section : Learning physical keys and configuring the controllers to your liking
Depending on the software, the final step may be to enter the SW Learning application to configure the controllers to your liking.
Octa :
Ensure that no CANBUS configuration has been previously applied by entering Car Settings , Factory section , CarType Configuration , password 000000 / 8888 , checking that no option is selected, then entering General , SWC and leaving it on Learning
After this, go into Car settings , Factory section : Learning physical keys and configuring the controllers to your liking
Depending on the software, the final step may be to enter the KeyStudy application to configure the controllers to your liking.
For models with CANBUS
- Connect the yellow RCA cable from the camera to the one on the screen
- Connect the cable marked 3️⃣ to 4️⃣
- Connect the cable marked 1️⃣ to the 5️⃣
For models without CANBUS
- Connect the yellow RCA cable from the camera to the one on the screen
- Connect the cable marked 3️⃣ to 4️⃣
- Connect the wire marked 1️⃣ to 5️⃣ and this connection to the reverse positive terminal.
- Connect the wire marked 2️⃣ to the reverse negative terminal
Wire 4 is located in the radio's main wiring harness. In some models, it is labeled "Reverse" or "Brake" . If it is not labeled, it is wire number 3 in the following photo:
My touch keys have become unconfigured, how do I configure them?
Learning Process in Radio:
Go to the Car Settings app on your screen.
Go back to Car Settings and then to a section called Factory , Factory Settings or Car Settings .
It will probably ask you for a password . The most common one is 000000 , but it could also be 8888 or 16176699 .
Look for the Touch Key Learning section and configure the keys
Step 1: Press a button on the radio display (e.g., "Volume Up"). The button will light up or change state, indicating that it is "listening".
Step 2: Immediately afterwards, press and hold the corresponding touch button on the side of your car's screen (the actual volume up button).
Step 3: The radio will detect the signal and the icon on the screen will be "programmed" (it usually changes color).
Step 4: Repeat this process for all the buttons you want to program (Volume Down, Mute, Next, Previous, Answer Call...).

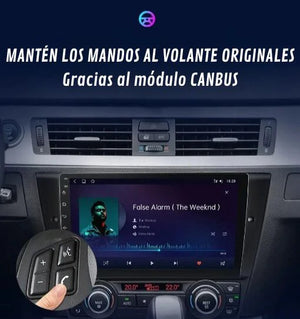

Maintain full control of the steering wheel and all its functions
Connect any rear camera for safe parking
High-quality HD IPS touchscreen with custom-made frame
Powerful 8-core processor for maximum fluidity
Enjoy full wireless connectivity with Apple CarPlay and Android Auto
View the climate control system on screen if your car has CANBUS
Browse with complete freedom, 4G and WiFi connectivity
