Give your Chevrolet Aveo a new life
Say goodbye to the factory radio and take the leap into the future. This HD touchscreen integrates seamlessly into the dashboard of your 2011-2015 Chevrolet Aveo , giving you instant access to modern technology without sacrificing style.
What you gain with this update:
- 📱 Total Connectivity (Wireless) : Enjoy Apple CarPlay and Android Auto without the need to connect cables.

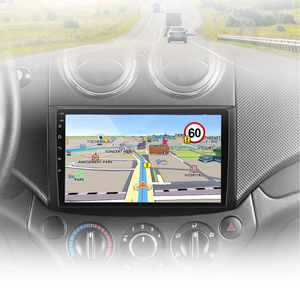

- 🗺️ Precise GPS Navigation : Integrated GPS for use with Google Maps, Waze or your favorite map apps.
- 🎵 Superior Sound (RDS+DSP) : The digital sound processor (DSP) and RDS tuner improve the factory audio quality.
- 📞 Bluetooth Hands-Free : Crystal clear calls and uninterrupted streaming of your music (Spotify, etc.).
- 🔌 Perfect Integration : Maintains full compatibility with steering wheel controls.

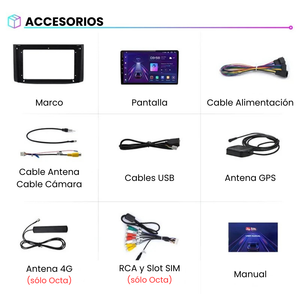

- 🔧 Complete "Plug & Play" Kit : Includes everything needed for installation: specific cabling for your model, antennas (GPS, WiFi) and accessories.
We know that choosing your car's electronics is an important decision. All our models are 100% compatible and high quality, but they are designed for different types of users.
CHOOSE YOUR MODEL
CANBUS configuration (for vehicles with CANBUS)
Ensure the CANBUS module is properly connected:
Quad :
Enter the Car Settings application, Factory section , CarType Settings , password 000000 / 16176699 , select canbus brand and car model
Octa :
Enter the Car Settings application, Factory section , CarType Settings , password 000000 / 8888 , select canbus brand and car model
Steering wheel control configuration (for vehicles WITHOUT CANBUS)
Quad :
Ensure that no CANBUS configuration has been previously applied by entering Car Settings , Factory section , CarType Configuration , password 000000 / 16176699 , checking that no option is selected, then entering General , SWC and leaving it on Learning
After this, go into Car settings , Factory section : Learning physical keys and configuring the controllers to your liking
Depending on the software, the final step may be to enter the SW Learning application to configure the controllers to your liking.
Octa :
Ensure that no CANBUS configuration has been previously applied by entering Car Settings , Factory section , CarType Configuration , password 000000 / 8888 , checking that no option is selected, then entering General , SWC and leaving it on Learning
After this, go into Car settings , Factory section : Learning physical keys and configuring the controllers to your liking
Depending on the software, the final step may be to enter the KeyStudy application to configure the controllers to your liking.
For models with CANBUS
- Connect the yellow RCA cable from the camera to the one on the screen
- Connect the cable marked 3️⃣ to 4️⃣
- Connect the cable marked 1️⃣ to the 5️⃣
For models without CANBUS
- Connect the yellow RCA cable from the camera to the one on the screen
- Connect the cable marked 3️⃣ to 4️⃣
- Connect the wire marked 1️⃣ to 5️⃣ and this connection to the reverse positive terminal.
- Connect the wire marked 2️⃣ to the reverse negative terminal
Wire 4 is located in the radio's main wiring harness. In some models, it is labeled "Reverse" or "Brake" . If it is not labeled, it is wire number 3 in the following photo:
My touch keys have become unconfigured, how do I configure them?
Learning Process in Radio:
Go to the Car Settings app on your screen.
Go back to Car Settings and then to a section called Factory , Factory Settings or Car Settings .
It will probably ask you for a password . The most common one is 000000 , but it could also be 8888 or 16176699 .
Look for the Touch Key Learning section and configure the keys
Step 1: Press a button on the radio display (e.g., "Volume Up"). The button will light up or change state, indicating that it is "listening".
Step 2: Immediately afterwards, press and hold the corresponding touch button on the side of your car's screen (the actual volume up button).
Step 3: The radio will detect the signal and the icon on the screen will be "programmed" (it usually changes color).
Step 4: Repeat this process for all the buttons you want to program (Volume Down, Mute, Next, Previous, Answer Call...).

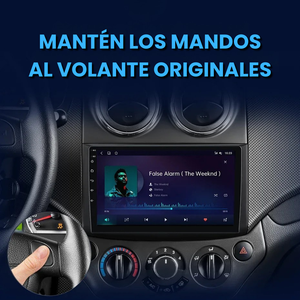

Maintain full control of the steering wheel and all its functions
Connect any rear camera for safe parking
High-quality HD IPS touchscreen with custom-made frame
Powerful 8-core processor for maximum fluidity
Enjoy full wireless connectivity with Apple CarPlay and Android Auto
View the climate control system on screen if your car has CANBUS
Browse with complete freedom, 4G and WiFi connectivity
