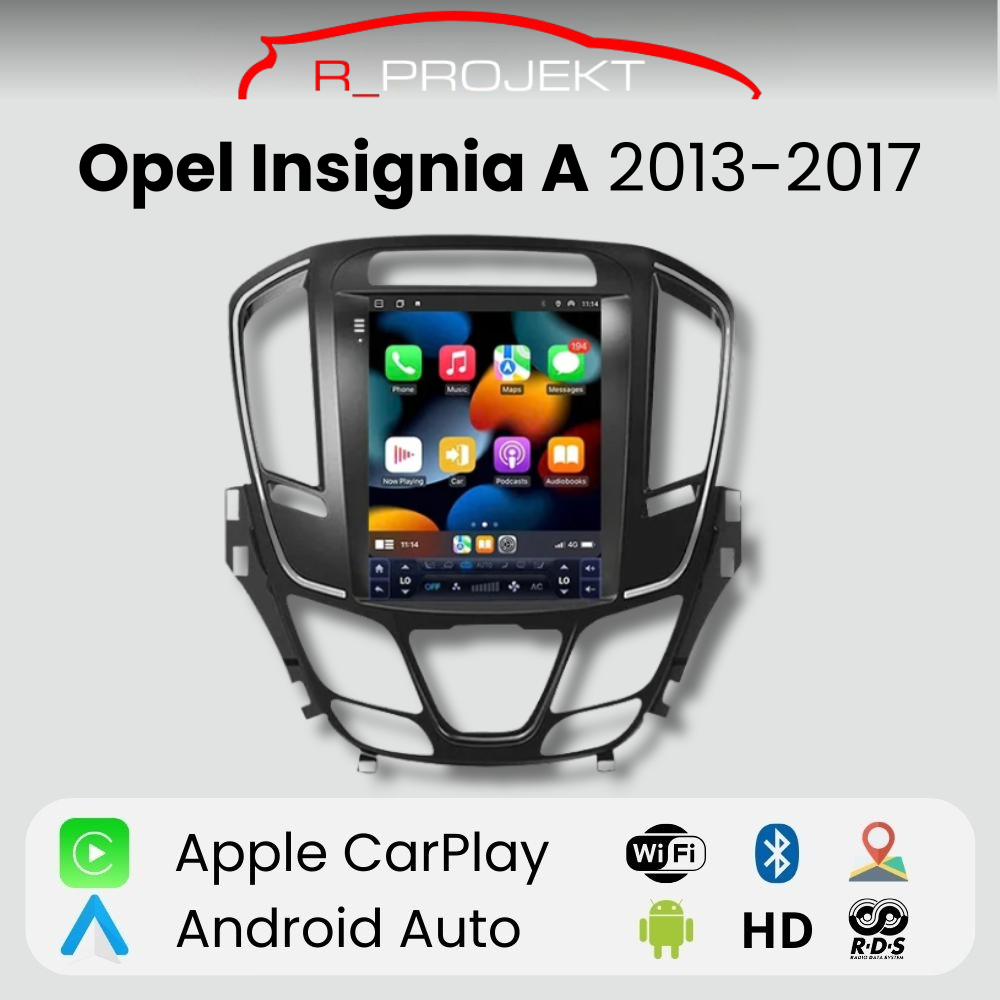

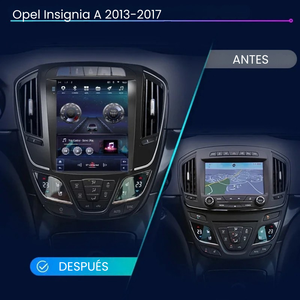

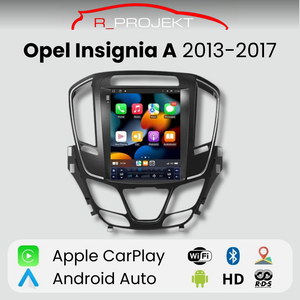

Breathe New Life into Your Opel Insignia A
Ditch the factory radio and take a leap into the future. This HD touchscreen integrates seamlessly into the dashboard of your Opel Insignia A (2013-2017), giving you instant access to modern technology without compromising the car's original aesthetic.
Why upgrade?
- 📱 Total Connectivity (Wireless): Enjoy Apple CarPlay and Android Auto without the hassle of cables.

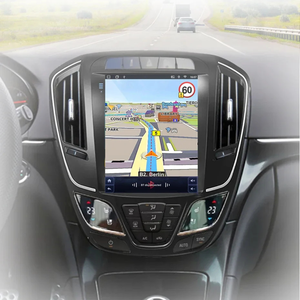

- 🗺️ Precise GPS Navigation: Built-in GPS lets you use Google Maps, Waze, or your preferred navigation apps directly on the screen.
- 🎵 Superior Sound (RDS+DSP): The Digital Sound Processor (DSP) and RDS tuner significantly enhance the factory audio quality.
- 📞 Bluetooth Hands-Free: Crystal clear calls and seamless music streaming (Spotify, etc.) with no interruptions.
- 🔌 Perfect Integration: Maintains full compatibility with your original steering wheel controls.
⚠️ Attention! Check Compatibility
INCOMPATIBLE: Models equipped with the BOSE sound system.
CHOOSE YOUR MODEL
| Processor | Quad-Core |
| RAM + ROM | 2GB + 32GB |
| Interface Speed | Fluid |
| Wireless CarPlay / Android Auto | |
| Head Unit | 9.7 Inch IPS 1024x768 |
| GPS / Bluetooth / Wi-Fi | |
| Premium Sound (RDS+DSP) | |
| 4G Connection | |
| Multitasking | Basic |
| Ideal Use | CarPlay and lightweight apps |
CANBUS Configuration (for vehicles with CANBUS)
Make sure the CANBUS module is properly connected:
Quad:
Enter the Car Settings app, go to the Factory or Fábrica section, CarType Configuration, password 000000/16176699, select the CAN bus brand and car model
Octa:
Enter the Car Settings app, go to the Factory or Fábrica section, CarType Configuration, password 000000/8888, select the CAN bus brand and car model
Steering Wheel Control Configuration (for vehicles WITHOUT CANBUS)
Quad:
Make sure that no CANBUS configuration has been previously applied by entering Car Settings, Factory section, CarType Configuration, password 000000/16176699, check that no option is selected, then enter General, SWC and leave it on Learning
After this, enter Car Settings, Factory section, Physical Key Learning and configure the controls as you wish
Depending on the software, the last step may be to enter the SW Learning app to configure the controls as you wish
Octa:
Make sure that no CANBUS configuration has been previously applied by entering Car Settings, Factory section, CarType Configuration, password 000000/8888, check that no option is selected, then enter General, SWC and leave it on Learning
After this, enter Car Settings, Factory section, Physical Key Learning and configure the controls as you wish
Depending on the software, the last step may be to enter the KeyStudy app to configure the controls as you wish
For models with CANBUS
- Connect the camera's yellow RCA to the screen's yellow RCA
- Connect the cable marked with 3️⃣ to 4️⃣
- Connect the cable marked with 1️⃣ to 5️⃣
For models without CANBUS
- Connect the yellow RCA from the camera to the screen's yellow RCA
- Connect the cable marked with 3️⃣ to 4️⃣
- Connect the cable marked with 1️⃣ to 5️⃣ and this connection to the reverse positive
- Connect the cable marked with 2️⃣ to the reverse negative
THE 4️⃣ CABLE IS FOUND IN THE MAIN WIRING OF THE RADIO, IN SOME MODELS IT IS OFTEN LABELED AS "REVERSE" OR "BRAKE". IF IT IS NOT LABELED, IT IS NUMBER 3 IN THE FOLLOWING PHOTO:
Make sure to connect the AMP cable to the main red ACC power cable.
Make sure the CANBUS is properly connected.
The power cable you received should have a yellow RCA plug on the top (the cable that supports the rear camera). If it has a yellow RCA plug, connect it according to the wiring diagram below.

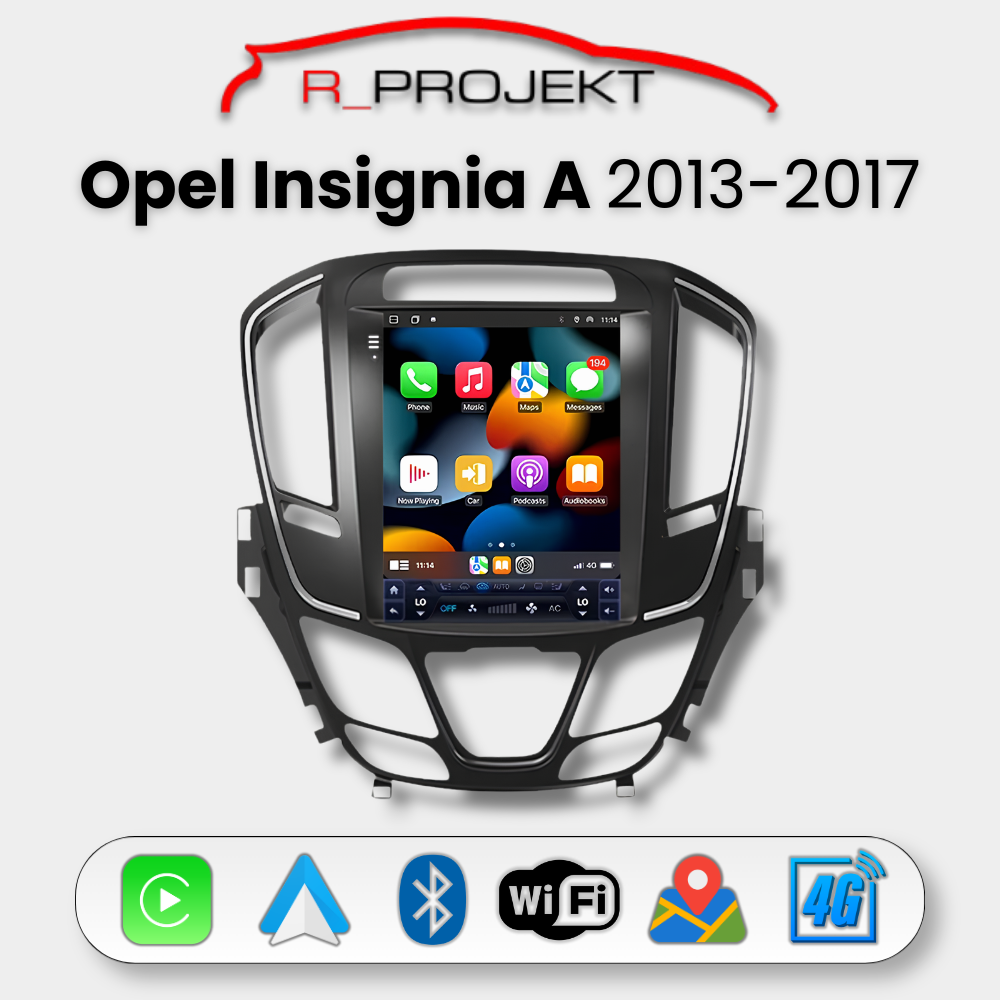

Android Auto Carplay Head Unit Opel Insignia A 9.7" 2013-2017
Keep full control of the steering wheel and all its functions
Connect any rear camera to park with complete safety
High-quality HD IPS touch Head Unit with custom-specific frame
Powerful 8-core processor for maximum smoothness

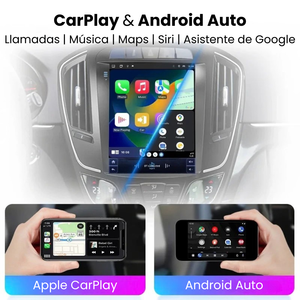

Enjoy full wireless connectivity with Apple CarPlay and Android Auto

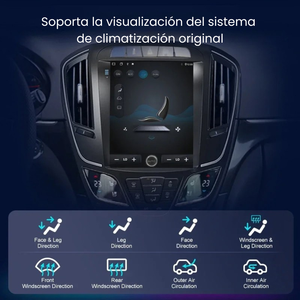

View the climate control system on the screen if your car has CANBUS
Browse with complete freedom, 4G connectivity, and WiFi
