Give your Opel Insignia A a new life
Say goodbye to the factory radio and take the leap into the future. This HD touchscreen integrates seamlessly into the dashboard of your 2008-2013 Opel Insignia A , giving you instant access to modern technology without compromising on style.
What you gain with this update:
- 📱 Total Connectivity (Wireless) : Enjoy Apple CarPlay and Android Auto without the need to connect cables.

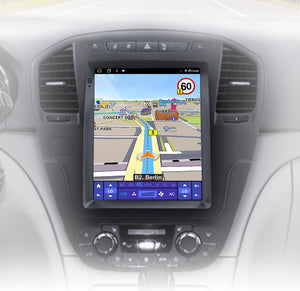

- 🗺️ Precise GPS Navigation : Integrated GPS for use with Google Maps, Waze or your favorite map apps.

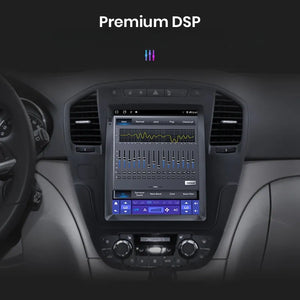

- 🎵 Superior Sound (RDS+DSP) : The digital sound processor (DSP) and RDS tuner improve the factory audio quality.

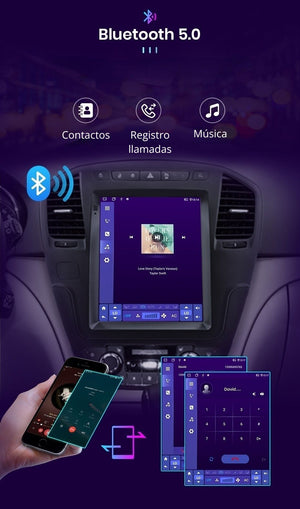

- 📞 Bluetooth Hands-Free : Crystal clear calls and uninterrupted streaming of your music (Spotify, etc.).
- 🔌 Perfect Integration : Maintains full compatibility with steering wheel controls.
⚠️ Attention!
If your car has " SPORT ", " OPC " or " TOUR " buttons, they will not fit in the new frame, meaning you will have to relocate them or they will lose their function.
CHOOSE YOUR MODEL
CANBUS configuration (for vehicles with CANBUS)
Ensure the CANBUS module is properly connected:
Quad :
Enter the Car Settings application, Factory section , CarType Settings , password 000000 / 16176699 , select canbus brand and car model
Octa :
Enter the Car Settings application, Factory section , CarType Settings , password 000000 / 8888 , select canbus brand and car model
Steering wheel control configuration (for vehicles WITHOUT CANBUS)
Quad :
Ensure that no CANBUS configuration has been previously applied by entering Car Settings , Factory section , CarType Configuration , password 000000 / 16176699 , checking that no option is selected, then entering General , SWC and leaving it on Learning
After this, go into Car settings , Factory section : Learning physical keys and configuring the controllers to your liking
Depending on the software, the final step may be to enter the SW Learning application to configure the controllers to your liking.
Octa :
Ensure that no CANBUS configuration has been previously applied by entering Car Settings , Factory section , CarType Configuration , password 000000 / 8888 , checking that no option is selected, then entering General , SWC and leaving it on Learning
After this, go into Car settings , Factory section : Learning physical keys and configuring the controllers to your liking
Depending on the software, the final step may be to enter the KeyStudy application to configure the controllers to your liking.
For models with CANBUS
Connect the yellow RCA cable from the camera to the one on the screen
Connect the cable marked 3️⃣ to 4️⃣
Connect the cable marked 1️⃣ to the 5️⃣
For models without CANBUS
Connect the yellow RCA cable from the camera to the one on the screen
Connect the cable marked 3️⃣ to 4️⃣
Connect the wire marked 1️⃣ to 5️⃣ and this connection to the reverse positive terminal.
Connect the wire marked 2️⃣ to the reverse negative terminal
Wire 4 is located in the radio's main wiring harness. In some models, it is labeled "Reverse" or "Brake" . If it is not labeled, it is wire number 3 in the following photo:
Make sure to connect the AMP cable to the red ACC main power cable.
Make sure the CANBUS is properly connected.
The power cable you received should have a yellow RCA plug on top (the cable that supports the rear camera). If it has a yellow RCA plug, connect it according to the wiring diagram below.

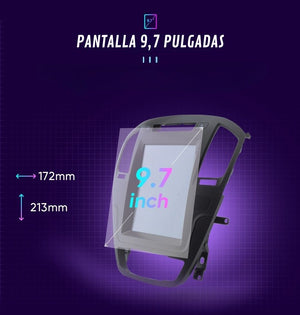

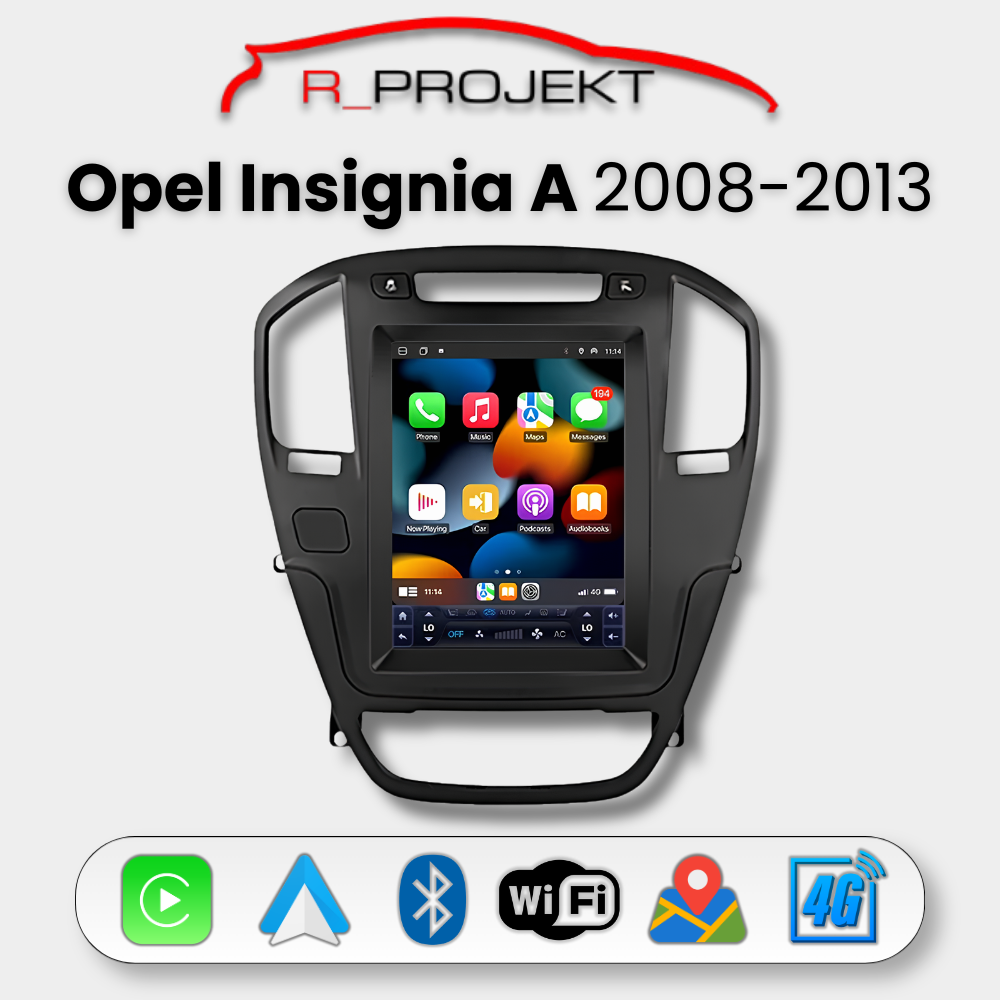

Android Auto Carplay Screen Opel Insignia A 9.7" 2008-2013

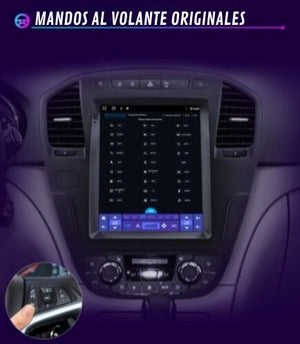

Maintain full control of the steering wheel and all its functions

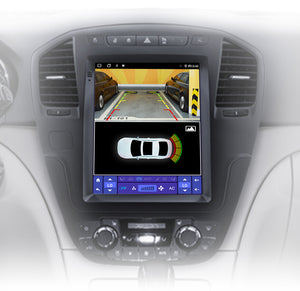

Connect any rear camera for safe parking
High-quality HD IPS touchscreen with custom-made frame
Powerful 8-core processor for maximum fluidity
Enjoy full wireless connectivity with Apple CarPlay and Android Auto

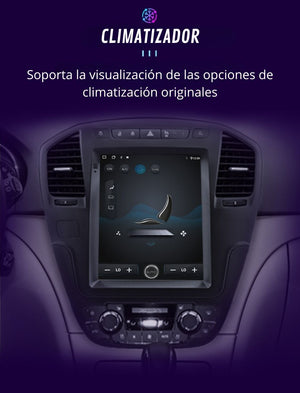

View the climate control system on screen if your car has CANBUS
Browse with complete freedom, 4G and WiFi connectivity
