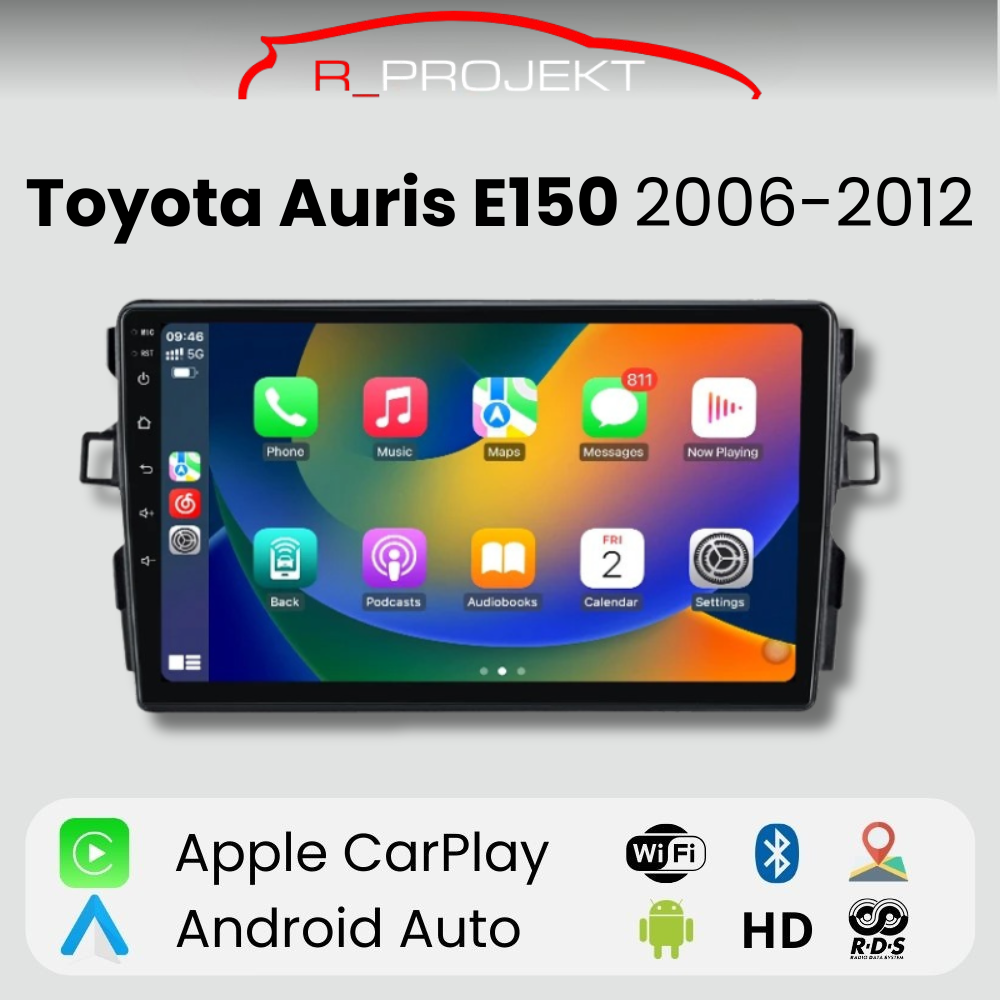

Android Auto Radio Carplay Toyota Auris E150 2006 - 2012

Maximise your driving experience with the advanced multimedia equipment designed for your Toyota Auris E150 (2006 - 2012). This device offers you perfect integration with Apple CarPlay and Android Auto functions, available both wirelessly and by cable.

• Full connectivity : With the Mirror Link function, project all the content of your mobile on the car screen. Enjoy your favorite playlists on Spotify and navigate with ease using Google Maps or Waze through voice commands, making your driving safer and more efficient. .
• Full Compatibility : Keep all of your vehicle's original functions. Easily control steering wheel functions and access fuel consumption and trip information from the screen, without losing any functionality when installing your new Android radio.
• Technical specifications :
  • Operating system: Android 12
  • Touch screen: 9 inches (1024x600) [1280x720 optional Octa version]
  • Processor: Quad Core 1.2 GHz [Octa Core 1.6 GHz optional]
  • RAM Memory: 1GB DDR3 [2GB/4GB/6GB/8GB optional]
  • Internal storage: 32GB [64GB/128GB/256GB optional]
  • Connectivity: Bluetooth, WIFI [4G network optional Octa version]
  • Built-in GPS
  • Mirror Link Functionality
  • Integrated steering wheel control
  • Radio with RDS + DSP

Transform your Toyota Auris E150 with this Android multimedia screen and enjoy a connected, safe and advanced driving experience.

CONTENT OF THE KIT:

• Screen, custom frame, power cable, USB cable, GPS module, rear camera cable, antenna cable, CANBUS module (if the model has CANBUS), 4G antenna (Octa version only) and RCA wiring with SIM card slot (Octa version only) .

The OCTA variants are our most economical options, they have a 4-core processor, a resolution of 1024*600, RDS, GPS connectivity, Wi-Fi, Bluetooth and wireless Android Auto & Apple CarPlay systems. These variants do not support reversing cameras with 1080P resolution.

The OCTA variants have an 8-core processor, 1280*720 HD resolution, GPS connectivity, Wi-Fi, Bluetooth, 4G (inserting a SIM card) RDS, GPS connectivity, Wi-Fi, Bluetooth, Android Auto & Apple systems Wireless CarPlay, additional RCA wiring with SIM card slot and DSP equalizer options.

CANBUS configuration (for vehicles with CANBUS)

Ensure that the CANBUS module is correctly connected:

QUAD: Enter the Car Settings application, section Factory or Factory, CarType Settings, password 000000, select canbus brand and car model

OCTA: Enter Settings, Car infotainment, About device or About device, click on the top right gear, password 8888 u 8878, CAN Type, click on ALL and search for the car model. Once this is done, click on SAVE and restart the computer

Steering wheel control configuration (for vehicles WITHOUT CANBUS)

QUAD: Enter Car settings, General, SWC Type, Leave it at Learning Type, enter Enter SWC setting interface and configure the controls to your liking

OCTA: Ensure that no CANBUS configuration has been previously applied by entering Settings, Car infotainment, About device or About device, click on the top right gear, password 8888 or 8878, CAN Type, check that the CAN Type option is 0

After this, go to Settings, then Car Infotainment, SWC, configure the steering wheel controls by pressing the function we want on the screen and leaving the steering wheel button that we want to program pressed

Rear camera

QUAD: Enter Settings, Factory, password 000000, Reverse detection.

OCTA: Enter Settings, Car Infotainment, About device or About Device, click on the top right gear, password 8888 or 8878, Backup Setup, We look for CamType and select the appropriate option for our camera
