Make the most of your car with this multimedia system, which offers Apple CarPlay and Android Auto functions wirelessly or with a cable.

Send all the content of your mobile to the screen with Mirror Link .

Listen to your favorite music and playlists with Spotify , navigate easily with Google Maps or Waze giving you voice instructions, making driving safer and more efficient.

Respect all the original functions of the vehicle, do not worry about losing the steering wheel controls and the consumption or journey information of the car, from the screen itself you can control all those functions that you do not want to lose when installing an Android radio.

• Android 12
• 9 inch screen 1024*600 - 1280*720P (Octa version optional)
• Android auto + Apple Carplay
• Quad Core 1.2GHZ (Octa version 1.6GHZ optional) + DDR3 1GB Flash (2GB/4GB/6GB/8GB optional)
• 32GB memory (64GB/128GB/256GB optional)
• Bluetooth
• WIFI (4G network optional Octa version)
• Built-in GPS
• Mirror link
• Steering wheel control
• RDS + DSP

CONTENT OF THE KIT:

• Screen, custom frame, power cable, USB cable, GPS module, rear camera cable, antenna cable, CANBUS module (if the model has CANBUS), 4G antenna ( Octa version only) and RCA wiring with SIM card slot (Octa version only) .

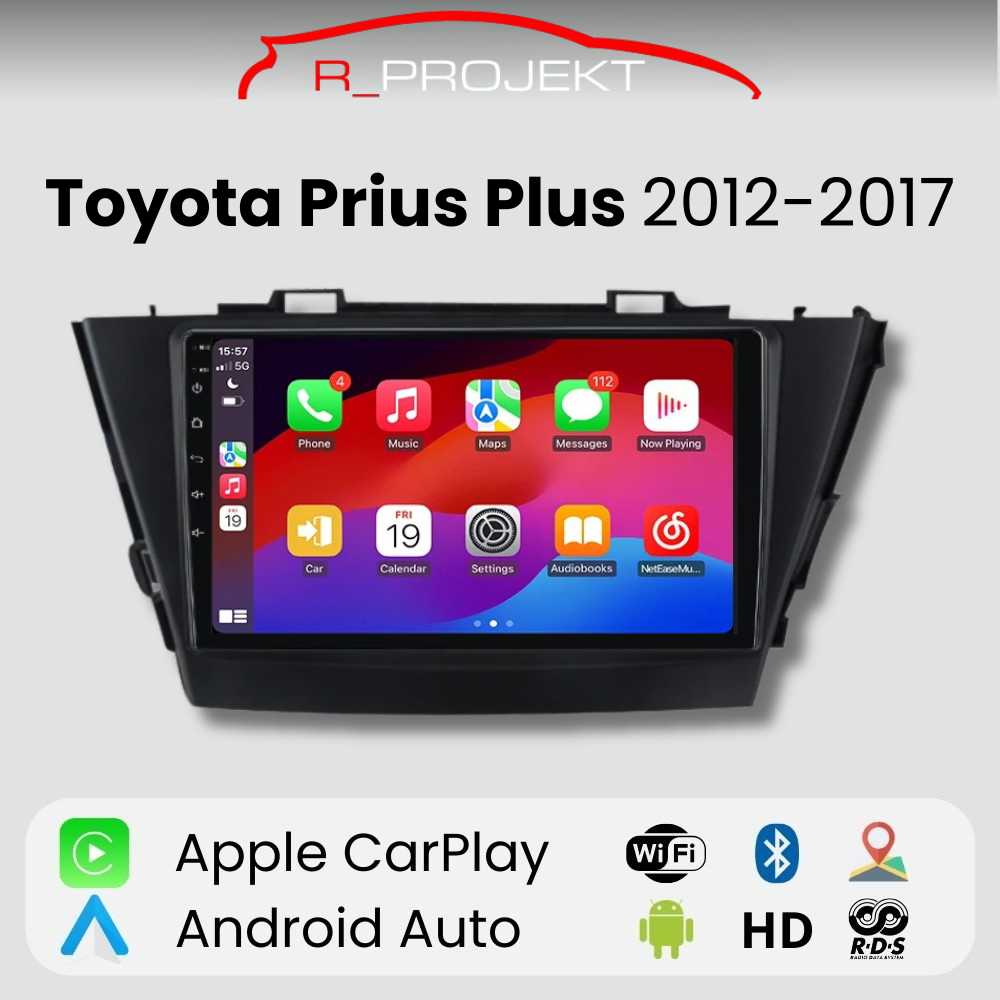

The Android Auto CarPlay radio for Toyota Prius Plus (2012-2017) is the ideal choice to upgrade your vehicle with advanced connectivity and entertainment technology. Equipped with a high-definition touchscreen , this device offers direct access to Android Auto and Apple CarPlay , allowing you to use your favorite apps like Google Maps , Spotify , Waze and more, all from the comfort of your car's dashboard.

This system is Bluetooth compatible, making hands-free calling and music streaming easy, improving both safety and convenience while driving. Its Android operating system also gives you full access to the Google Play Store , allowing you to download and customize your experience with a wide range of apps.

The radio has been designed to perfectly fit the Toyota Prius Plus , ensuring easy installation while maintaining the original aesthetics of the vehicle. In addition, it is compatible with steering wheel controls and reversing cameras , ensuring complete integration with the car's existing functions.

With built-in GPS , you can navigate without the need for an internet connection, ensuring accurate and up-to-date routes wherever you are. This Android Auto CarPlay radio not only modernizes your Toyota Prius Plus , but also improves your driving experience with greater safety, comfort and entertainment.

The OCTA variants are our most economical options, they have a 4-core processor, a resolution of 1024*600, RDS, GPS connectivity, Wi-Fi, Bluetooth and wireless Android Auto & Apple CarPlay systems. These variants do not support reversing cameras with 1080P resolution.

The OCTA variants have an 8-core processor, 1280*720 HD resolution, GPS connectivity, Wi-Fi, Bluetooth, 4G (inserting a SIM card) RDS, GPS connectivity, Wi-Fi, Bluetooth, Android Auto & Apple systems Wireless CarPlay, additional RCA wiring with SIM card slot and DSP equalizer options.

CANBUS configuration (for vehicles with CANBUS)

Ensure that the CANBUS module is correctly connected:

QUAD: Enter the Car Settings application, section Factory or Factory, CarType Settings, password 000000, select canbus brand and car model

OCTA: Enter Settings, Car infotainment, About device or About device, click on the top right gear, password 8888 u 8878, CAN Type, click on ALL and search for the car model. Once this is done, click on SAVE and restart the computer

Steering wheel control configuration (for vehicles WITHOUT CANBUS)

QUAD: Enter Car settings, General, SWC Type, Leave it at Learning Type, enter Enter SWC setting interface and configure the controls to your liking

OCTA: Ensure that no CANBUS configuration has been previously applied by entering Settings, Car infotainment, About device or About device, click on the top right gear, password 8888 or 8878, CAN Type, check that the CAN Type option is 0

After this, go to Settings, then Car Infotainment, SWC, configure the steering wheel controls by pressing the function we want on the screen and leaving the steering wheel button that we want to program pressed

Rear camera

QUAD: Enter Settings, Factory, password 000000, Reverse detection.

OCTA: Enter Settings, Car Infotainment, About device or About Device, click on the top right gear, password 8888 or 8878, Backup Setup, We look for CamType and select the appropriate option for our camera
