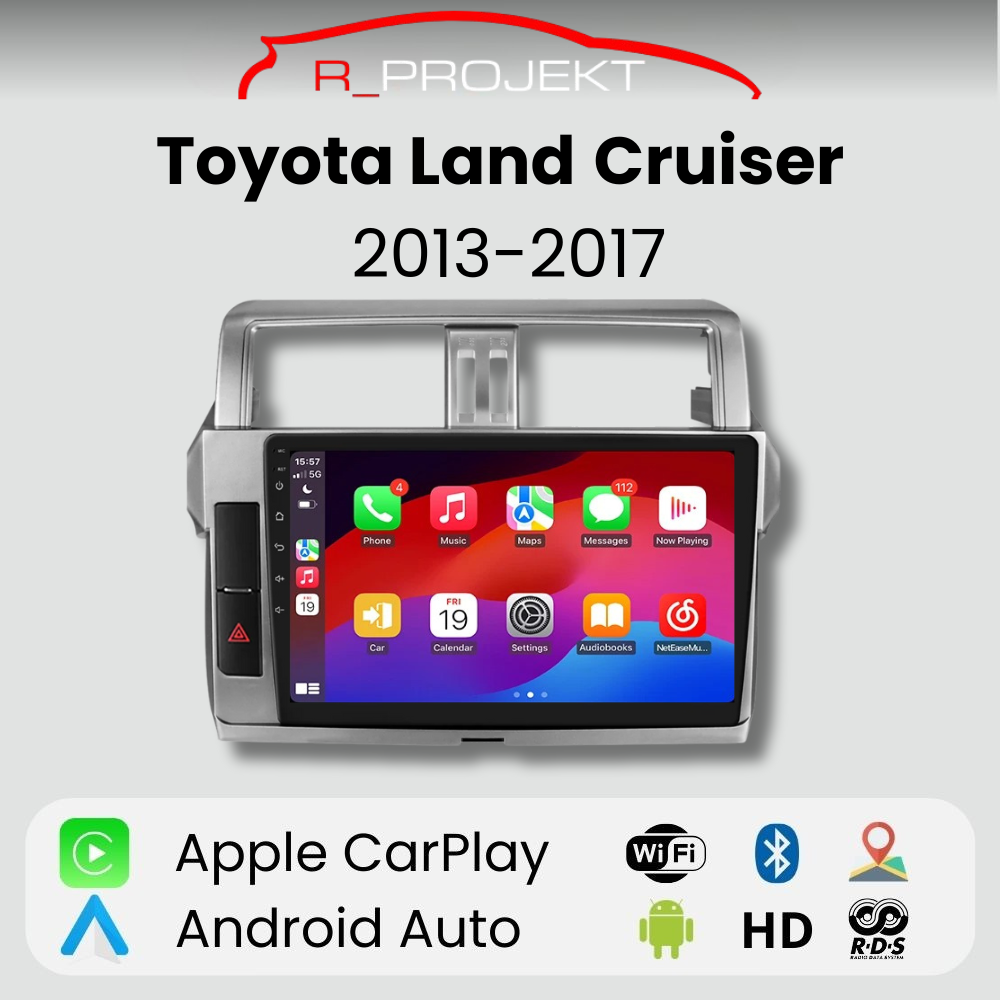

Android Auto Radio Carplay Toyota Land Cruiser 2013-2017

• Android 12
• 10.1-inch 1024*600 - 1280*720P QLED screen (optional S versions)
• Android auto + Apple Carplay
• Quad Core 1.2 GHZ - (Octa Core 1.8 GHZ/2.0 GHZ optional S versions) + DDR3 1GB Flash (2GB/3GB/4GB/6GB/8GB optional)
• 32GB memory (64GB/128GB optional)
• Bluetooth
• WIFI (optional 4G network S versions)
• Built-in GPS
• Rear camera (optional)
• Mirror link
• Steering wheel control
• RDS + DSP (optional)

CONTENTS OF KIT:

• Screen, custom frame, power cable, USB cable, GPS module, rear camera cable, antenna cable, CANBUS module (if the model has CANBUS), 4G antenna (4G variants only), RCA wiring, wiring with slot for SIM cards (4G variants only) and external microphone.

Factory password 8888

CANBUS CONFIGURATION

The OCTA variants are our most economical options, they have a 4-core processor, a resolution of 1024*600, RDS, GPS connectivity, Wi-Fi, Bluetooth and wireless Android Auto & Apple CarPlay systems. These variants do not support reversing cameras with 1080P resolution.

The OCTA variants have an 8-core processor, 1280*720 HD resolution, GPS connectivity, Wi-Fi, Bluetooth, 4G (inserting a SIM card) RDS, GPS connectivity, Wi-Fi, Bluetooth, Android Auto & Apple systems Wireless CarPlay, additional RCA wiring with SIM card slot and DSP equalizer options.

CANBUS Configuration (for vehicles with CANBUS)

Make sure the CANBUS module is properly connected:

Quad :

Enter the Car Settings application, Factory section , CarType Configuration , password 000000 / 16176699 , select the canbus brand and car model

Octa :

Enter the Car Settings application, Factory section , CarType Configuration , password 000000 / 8888 , select the canbus brand and car model

Steering wheel control configuration (for vehicles WITHOUT CANBUS)

Quad :

Make sure that no CANBUS configuration has been previously applied by going to Car Settings , Factory section , CarType Configuration , password 000000 / 16176699 , check that no option is selected, then go to General , SWC and leave it on Learning

After this go into Car settings , Factory section , Learning physical keys and configuring the controls to your liking

Depending on the software, the last step may be to enter the SW Learning application to configure the controls to your liking.

Octa :

Make sure that no CANBUS configuration has been previously applied by going to Car Settings , Factory section , CarType Configuration , password 000000 / 8888 , check that no option is selected, then go to General , SWC and leave it on Learning

After this go into Car settings , Factory section , Learning physical keys and configuring the controls to your liking

Depending on the software, the last step may be to enter the KeyStudy application to configure the controls to your liking.

Rear Camera Connection

VEHICLES WITH CANBUS

* THE ⓸ CABLE IS LOCATED IN THE MAIN WIRING HARNESS OF THE RADIO, IN SOME MODELS IT IS USUALLY LABELED AS "REVERSE" OR "BRAKE" . IF IT IS NOT LABELED, IT IS MARKED IN THE FOLLOWING PHOTO AS ⓷ .

VEHICLES WITHOUT CANBUS

* THE ⓸ CABLE IS LOCATED IN THE MAIN WIRING HARNESS OF THE RADIO, IN SOME MODELS IT IS USUALLY LABELED AS "REVERSE" OR "BRAKE" . IF IT IS NOT LABELED, IT IS MARKED IN THE FOLLOWING PHOTO AS ⓷ .

Rear Camera Settings

Quad :

Go to Settings , Factory , Password 000000 , Reverse Detection.

Octa :

Go to Settings , Car Infotainment , About device , click on the gear at the top right , password 8888 or 8878 , Backar Setup , look for CamType and select the appropriate option for our camera
