Get the most out of your car with this multimedia system, which offers Apple CarPlay and Android Auto functions, either wirelessly or with a cable.
Send all the content from your mobile to the screen with Mirror Link .
Listen to your favorite music and playlists with Spotify , navigate easily with Google Maps or Waze with voice guidance, making driving safer and more efficient.
It preserves all of the vehicle's original functions . Don't worry about losing steering wheel controls , fuel consumption, or mileage information. From the screen itself, you can control all the functions you don't want to lose when installing an Android radio.
- Android 13

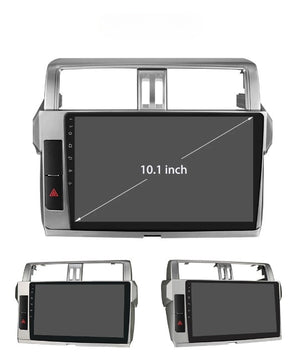

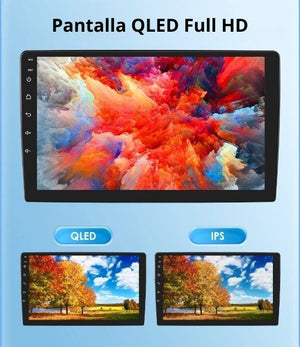

- 10.1 inch 1024*600 - 1280*720P QLED HD display (optional Octa versions)
- Android Auto + Apple CarPlay
- Quad Core 1.2 GHZ - (Octa Core 1.8 GHZ/2.0 GHZ optional Octa versions) + DDR3 2GB Flash (4GB/6GB/8GB optional)
- 32GB memory (64GB/128GB optional)
- Bluetooth
- WIFI (optional 4G network 4G versions)
- Built-in GPS
- Rear camera (optional)
- Mirror link

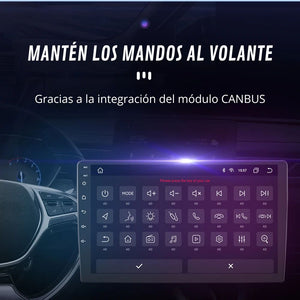

- Steering wheel control

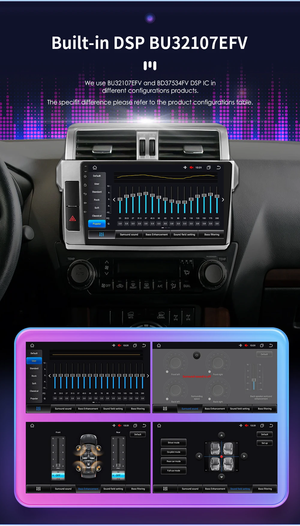

- RDS + DSP

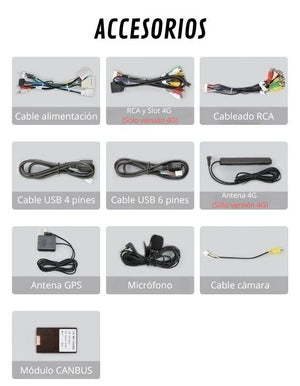

CONTENT OF THE KIT:

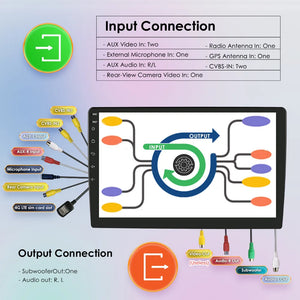

- Screen, custom frame, power cable, USB cable, GPS module, rear camera cable, antenna cable, CANBUS module (if the model has CANBUS), 4G antenna (4G variants only), RCA wiring, SIM card slot wiring (4G variants only) and external microphone.
Factory password 8888
CANBUS CONFIGURATION
CHOOSE YOUR MODEL
| Processor | Quad-Core (MediaTek) |
| RAM + ROM | 2GB + 64GB |
| Interface Speed | Fluid |
| Wireless CarPlay / Android Auto | |
| Head Unit | 9 Inch IPS 1024x600 |
| GPS / Bluetooth / Wi-Fi | |
| Premium Sound (RDS+DSP) | |
| 4G Connection | |
| Multitasking | Basic |
| Ideal Use | CarPlay and lightweight apps |
CANBUS Configuration (for vehicles with CANBUS)
Make sure the CANBUS module is properly connected:
Quad:
Enter the Car Settings app, go to the Factory or Fábrica section, CarType Configuration, password 000000, select the CAN bus brand and car model
Octa:
Enter the System Settings app, go to the Version section, then Factory Settings, password 8888, Car Model, select the CAN bus brand and car model, and click "Save"
Quad:
Enter the Car settings app, Factory section, Physical key learning, and configure the controls to your liking
Octa:
Enter the System Settings app, go to General, then Key Learning and SWC Key Learning, select the function you want to assign and then press and hold the steering wheel button for 3 seconds
For models with CANBUS
- Connect the camera's yellow RCA to the screen's yellow RCA
- Connect the cable marked with 3️⃣ to 4️⃣
- Connect the cable marked with 1️⃣ to 5️⃣
For models without CANBUS
- Connect the yellow RCA from the camera to the screen's yellow RCA
- Connect the cable marked with 3️⃣ to 4️⃣
- Connect the cable marked with 1️⃣ to 5️⃣ and this connection to the reverse positive
- Connect the cable marked with 2️⃣ to the reverse negative

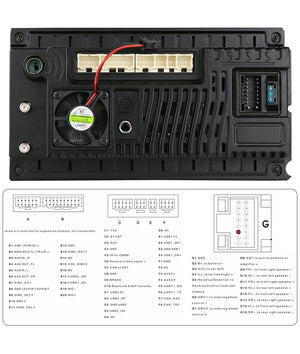

THE 4️⃣ CABLE IS FOUND IN THE MAIN WIRING OF THE RADIO, IN SOME MODELS IT IS OFTEN LABELED AS "REVERSE" OR "BRAKE". IF IT IS NOT LABELED, IT IS NUMBER 3 IN THE FOLLOWING PHOTO:
My touch keys have been misconfigured, how do I set them up?
Radio Learning Process:
Go to the Car Settings app on your screen, enter Factory.
You will likely be asked for a password, it is 000000.
Find the Touch Key Learning section and configure the keys.
Step 1: Press a button on the radio screen (e.g., "Volume Up"). The button will light up or change state, indicating it is "listening".
Step 2: Immediately after, press and hold the corresponding touch button on the side of your car's screen (the actual volume up button).
Step 3: The radio will detect the signal and the screen icon will be "programmed" (usually changes color).
Step 4: Repeat this process for all the buttons you want to program (Volume Down, Mute, Next, Previous, Answer Call...).
CHANGE TOUCH KEYS COLOR
Enter the app "Car Settings", then "Display" and finally "Lighting Color"
My touch keys have been misconfigured, how do I set them up?
Learning Process on the Radio:
Go to the System Settings app on your screen, enter General.
Look for the Key Learning section and then Touch Key Learning and configure the keys
Step 1: Press the screen where indicated for 10 seconds to perform the initial calibration.
Step 2: Press a button on the radio screen (e.g., "Volume Up"). The button will light up or change state, indicating it is "listening".
Step 3: Immediately after, press and hold the corresponding touch button on the side of your car's screen (the actual volume up button).
Step 4: The radio will detect the signal and the screen icon will be "programmed" (usually changes color).
Step 5: Repeat this process for all the buttons you want to program (Volume Down, Mute, Next, Previous, Answer Call...).
CHANGE TOUCH KEYS COLOR
Enter the app System Settings, then General, and finally "Button Backlight Color"
Why does the screen not respond when I touch it or open the wrong page when I touch it?
This could be due to a screen malfunction; it needs to be calibrated.
Press the screen with five fingers simultaneously. The calibration icon will appear. Click on it to complete the process. Note that pressing the screen with five fingers may take more than 20 seconds.
OCTA VERSION:
Go to the System Settings app, then to Version, and finally to "Touch Calibration"
Make sure to connect the AMP cable to the main red ACC power cable.
Make sure the CANBUS is properly connected.
The power cable you received should have a yellow RCA plug on the top (the cable that supports the rear camera). If it has a yellow RCA plug, connect it according to the wiring diagram below.
This option is only available for models with CANBUS
QUAD VERSION:
First configure the CANBUS and then enter the app "Can Vehículo" to view the available original settings
OCTA VERSION:
First configure the CANBUS and then enter the Car Information app to view the available original settings

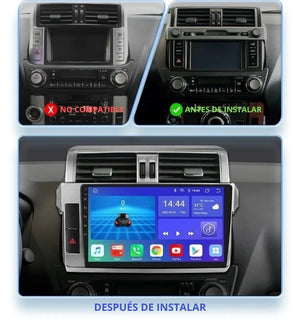

Android Auto Carplay Head Unit Toyota Land Cruiser 2013-2017
Keep full control of the steering wheel and all its functions

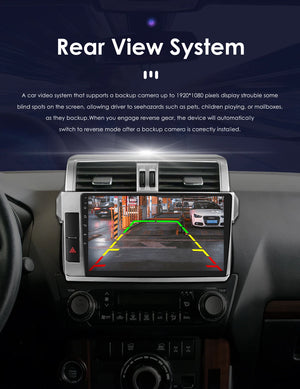

Connect any rear camera to park with complete safety
High-quality HD IPS touch Head Unit with custom-specific frame
Powerful 8-core processor for maximum smoothness
Enjoy full wireless connectivity with Apple CarPlay and Android Auto

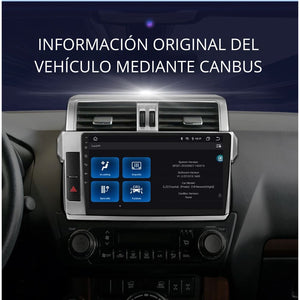

View the climate control system on the screen if your car has CANBUS
Browse with complete freedom, 4G connectivity, and WiFi
